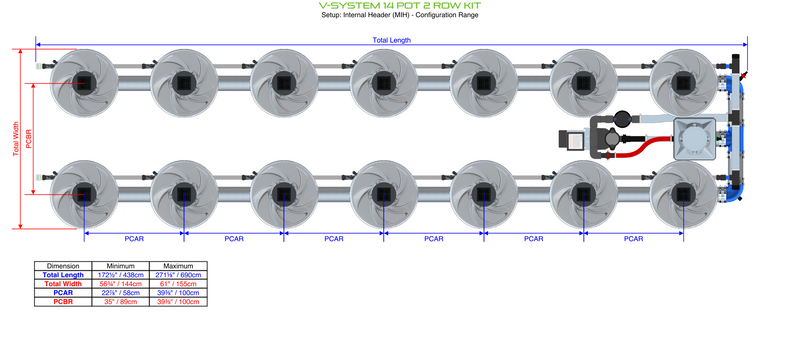

Alien Hydroponics V-SYSTEM 14 Pot 2 Row Kit

Alien Hydroponics V-System 14 Pot Highlights

• 15 gallon (58L) V-POT
• Water fill line
• Total-drainage bases
• Venturi injectors
• Inspection Covers
• 5" spiral tubing
• 5" Dual-Flow™ fittings
• Integrated filtration
• T304 Stainless clamps
• Heavy-duty components
• Push-fit feed connections
• JET-STREAM® Vortex™ pump
• Float valve for automatic top-off

What is Included in the Alien Hydroponics V-System 14 Pot

• 1x V-SYSTEM Vortex Water Pump 750W 120V 15000 l/h

• 1x Float Valve

• 14x V-Pot 58L

• 14x V-Pot Base

• 14x V-Pot Lid

• 1x V-SYSTEM Header Pot 20L 40mm

• 1x Filter Manifold Complete 50mm–1.5"

• 1x Silver Lid

• 1x Header Pot Blank

• 14x Square Net Pot

• 1x Elbow 50mm Barbed

• 2x Clamp Size 2

• 2x Clamp Size 3

• 8x Clamp Size 4

• 34x 5" Stainless Steel Clamp

• 1x Hosetail 16mm–3/4" Female Green

• 14x Pipe 28mm White Rigid 100cm Piece

• 1x Pipe 32mm Red Spiral 100cm Piece

• 1x Pipe 40mm Silver Spiral 100cm Piece

• 2x Pipe 50mm Silver 100cm Piece

• 15x Pipe 5" Silver Spiral 80cm Piece

• 36x 28mm Insert for 28mm Rigid Pipe

• 2x 28mm Push-Fit Stop End

• 2x DM Push-Fit Elbow 28mm V-SYSTEM

• 14x DM Push-Fit Tee 28–15mm V-SYSTEM

• 2x Elbow 5" Barbed with Drain Point

• 3x Elbow 5" Threaded Dual-Flow

• 15x Nut 5"

• 1x Tee 5" Barbed

• 12x Tee Threaded 5" Dual-Flow

• 1x Terminal Manifold Left 50mm

• 1x Terminal Manifold Right 50mm

• 1x Vortex Pump Inlet Manifold 40mm Short

• 15x Washer 5" Green Silicone

• 1x Tank Connector Straight 32mm

• 1x Tank Connector Straight 40mm

• 1x Distribution Tee 50mm

• 1x 1/2" Drain Cap Fitting

• 14x Venturi Inlet Fitting for 28mm Pipe

• 4x Silicone Grease – Food Grade

• 2x Threaded Tank Connector 1"

• 2x 1" Cap for Chiller Connections

• 1x Drain Tap 1/2"–16mm Barb

• 14x Silencer for Venturi

• 14x Air Filter for V-SYSTEM Venturi, 6mm

• 14x V-Pot Clip

• 14x Venturi Air Inlet Pipe 6mm Blue (2 × 4")

• 14x V-Pot Lid Inspection Cover

• 14x Venturi Fitting

• 1x Pipe Cutter 50mm

• 1x Wrench for Float Valve

• 1x 8mm Screwdriver for 5" Clamp

• 1x 8mm Socket for 5" Clamp

• 1x Wrench 5"

• 1x V-SYSTEM Instructions

Alien Hydroponics V-System 14 Pot Specifications

Alien Hydroponics V-System 14 Pot Manual

Alien Hydroponics V-System Warranty
